New approach for testing algorithmic trading strategies

Discussion in 'Programming' started by fan27, Jul 22, 2018.

  1. fan27

    fan27

    I created a document (attached to post) describing the platform I am currently building (C# .NET Core) to improve the process of finding profitable algorithmic strategies as described in the thread Removing the Golden Handcuffs.

    Feedback appreciated.



    New Approach for Testing Algorithmic Trading Strategies


    Overview
    The Problem

    Typical algorithmic trading research platforms incorporate the paradigm of writing some code and then execute a backtest.


    If (close > 50sma and close < lowerBollingerBand) then

    Buy stock xyz

    End if


    In the above example, most platforms have the ability to optimize the indicator parameters in one process which does add time savings. The problem with this approach is it requires the user to manually code the construction of each strategy. Some platforms have built in Machine Learning capabilities but they are not always intuitive for users.


    The Solution

    Imagine we could wrap data relationships in components that implement a common interface. Imagine those data relationships could be defined as static (i.e. close > 50sma) or dynamic (i.e. close ? 50sma) which would be defined for each point in time. Imagine we could then instruct the platform how to test the various combination of components we are interested in. Let’s walk through an actual example and see the associated code. The platform is written C# .NET Core.


    Note: The example below is very simple and only for demonstration purposes. Performance of strategies found via the code below would not be viable for live trading.

    Example
    [​IMG]

    Figure 1: Strategy Components


    In Figure 1 above, note the variable higherTfsma200. This strategy component contains the data relationship between the close and the 200 sma of the target time frame (15 minute). Also note the Operator.LessThan value. This means the data relationship is static with close < 200 sma. Next, note the higherTfciv1 component. This strategy component uses a ChangeInValue indicator which is wrapped in the ChangeInValueConfiguration class (more on how that works later). Also note the Operator.Dynamic value. This indicates that the actual relationship will be determined for each point in time for the 15 minute time series. Next, note the higherTfciv2 component. The only difference between this component and the previous component is it will determine the ChangeInValue for the current close and the previous close where higherTfciv1 only determines the ChangeInValue for the current close.

    Now that we have our strategy components, we are going to strategically assembly them in a Dictionary of ComponentConfiguration arrays. Note the construction of ccs (three keys of 0, 1, 2) and the requireKeys variable (0, 2). Each combination requires an element from the array at key 0 and 2 of the dictionary. There will only be one component per key in any combination. This will result in the following combination of these components.


    higherTfsma200, targetTfciv1

    higherTfsma200, targetTfciv2

    higherTfsma200, targetTfciv1, higherTfciv1

    higherTfsma200, targetTfciv1, higherTfciv2

    higherTfsma200, targetTfciv2, higherTfciv1

    higherTfsma200, targetTfciv2, higherTfciv2


    For each of the component combinations above, the platform will go through each point in time in the data series and construct a strategy based on the components. If any of the data relationships that are not defined as Operator.Dynamic and are not true for that point in time, the strategy is not tested. The platform keeps track of which strategies it tests so as not to duplicate work.


    [​IMG]

    Figure 2: Order Builders


    In Figure 2 we define the orders used in the backtest for each strategy. An OrderBuilder constructor takes two interface parameters which are IOrderConfigurator and IOrderDataRetriever which is implemented by the StopForRangeConfiguration and LimitForRangeConfiguration classes. By using publicly available interfaces, the users of the platform can easily extend the platform. More on that later. These two OrderBuilders will result in stop and limit orders that are 5 time the ATR value away from the entry price of the trade.


    [​IMG]

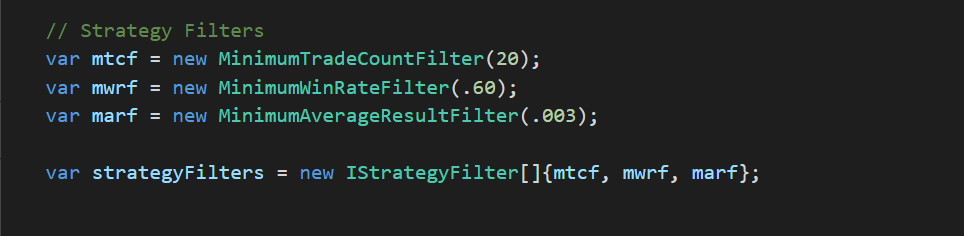

    Figure 3: Strategy Filters


    In Figure 3 we define three strategy filters to use. These filters will instruct the platform that we are only interested in strategies that have at least 20 trades, a minimum win rate of 60% and an average trade result of 3%. Strategy filters classes implement the IStrategyFilter interface so users of the platform can create their own strategy filters.




    [​IMG]

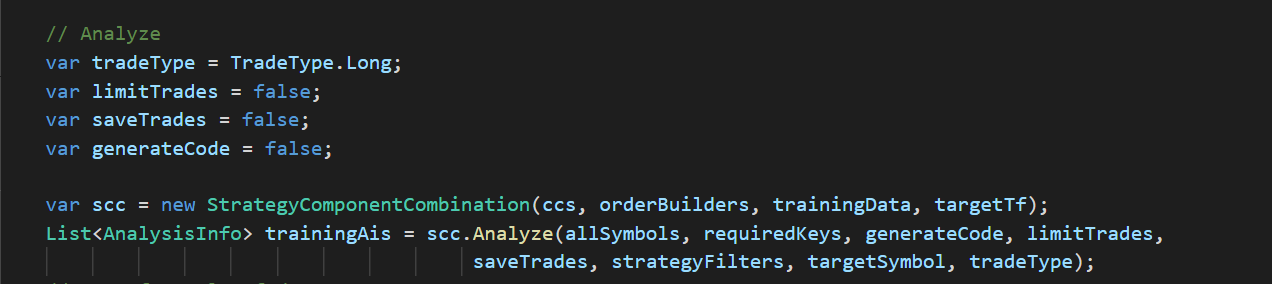

    Figure 4: Analyze


    In Figure 4, we instantiate the StrategyComponentCombination class and call its analyze method which will create strategies based on the targetSymbol data and test those strategies against that symbol and symbols in allSymbols. For now, we are only testing one symbol (ES). The limitTrades parameter indicates whether to take all signals or just one signal per symbol at a time (i.e. limitTrades = true means symbol XYZ would not have overlapping trades for a strategy). To save on memory, we have saveTrades and generateCode set to false because we do not need that information for strategies that do not need meet the filter criteria. The List<AnalysisInfo> collection will contain the definition and results of the strategies that passed the strategy filters.


    [​IMG]

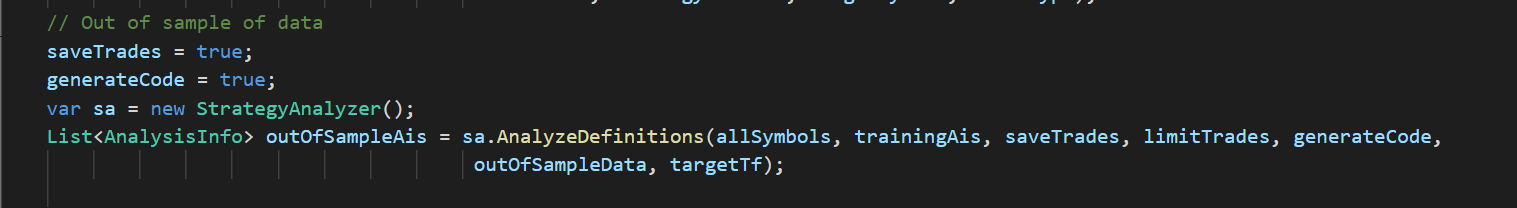

    Figure 5: Analyze filtered strategies on out of sample data


    In Figure 5, we backtest the strategies that passed the strategy filters on a new set of data. Here we have saveTrades and generateCode set to true as we will want to output this information.


    [​IMG]

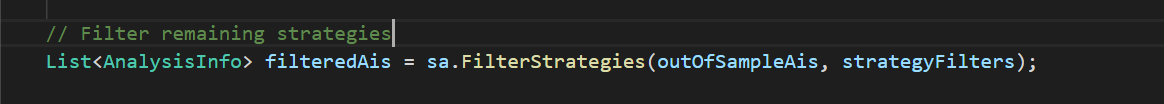

    Figure 6: Filter strategies test on out of sample data


    In Figure 6, the strategies are explicitly filtered from the results of the out of sample backtest. The next step (not shown here) is to output the results for further analysis.




    [​IMG]

    Figure 7: Actual execution of the preceding code


    Figure 7 shows that out of the strategy component combinations, 1054 total strategies were generated and tested. Of those, 49 strategies ran against the training data passed the strategy filters and 4 of those 49 strategies passed the strategy filters on the out of sample data. The results were written to disc. The total time to execute was 29 seconds.


    [​IMG]

    Figure 8: Order Optimization Code


    In Figure 8, we now want to test various order combinations with our filtered strategies. We add our OrderBuilder arrays to a Dictionary and use the same concept of the Dictionary and requireKeys variable to instruct the platform how to combine the OrderBuilders for each strategy. The code above will result in 99 unique OrderBuilder combinations which are then tested against the filtered strategies.


    [​IMG]

    Figure 9: Order Optimization Execution


    Figure 9 shows the order optimization execution. 99 order combinations were tested for the filtered strategies on the complete data set (ES 2002 to 2012) in 19 seconds.

    [​IMG]

    Figure 10: Result output of the filtered strategies written to disc


    [​IMG]

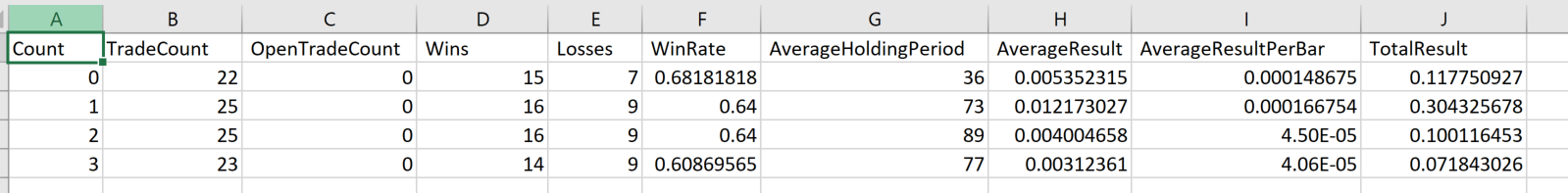

    Figure 11: EdgeTestResults.csv content containing result metrics of the 4 filtered strategies


    [​IMG]

    Figure 12: Code, results, trades and strategy definition data for one of the filtered strategies







    [​IMG]

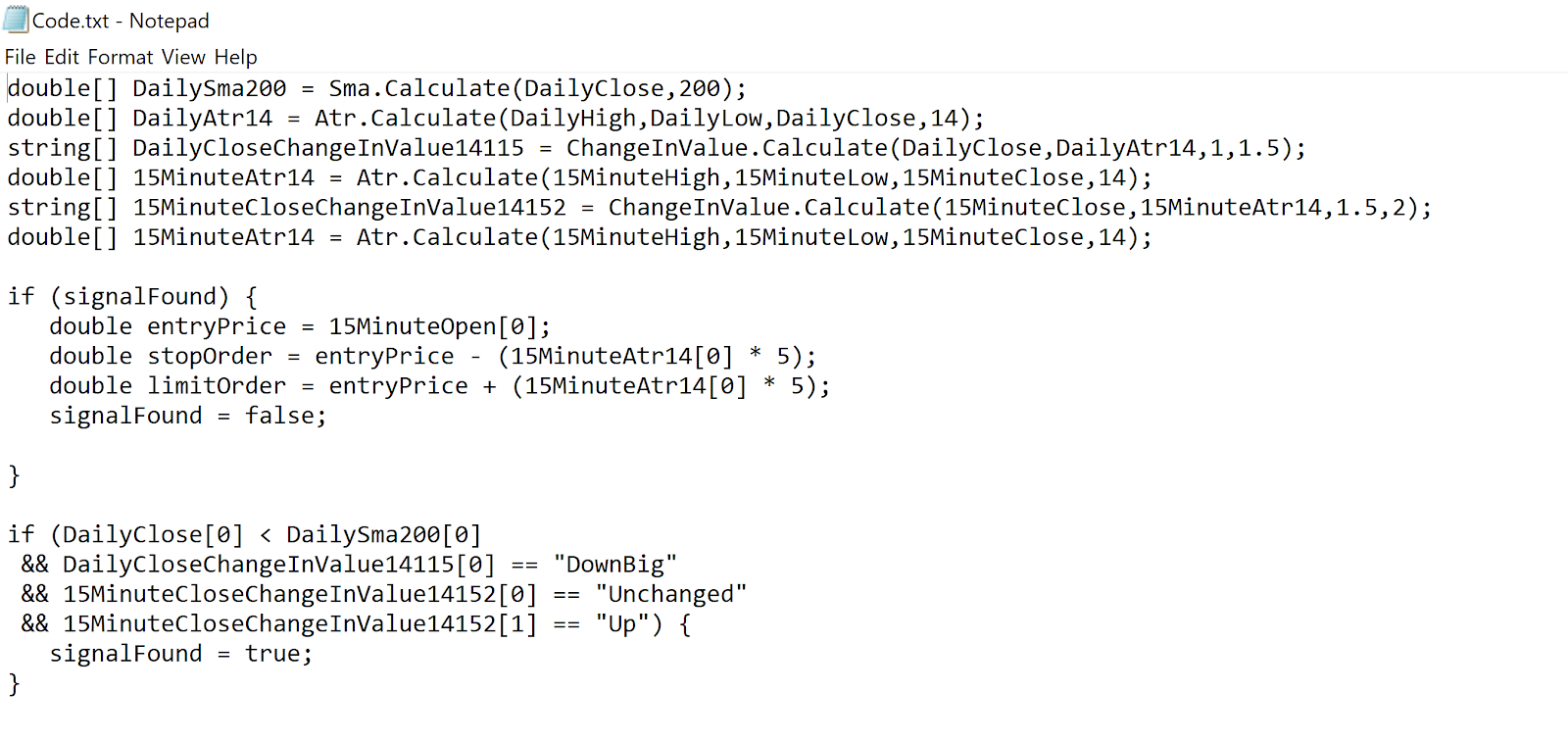

    Figure 13: C#/Pseudo Code of one of the filtered strategy


    Figure 13 shows code generated for one of the filtered strategies. This code as it is now will not compile but eventually will be able to compile in the targeted platform.


    [​IMG]

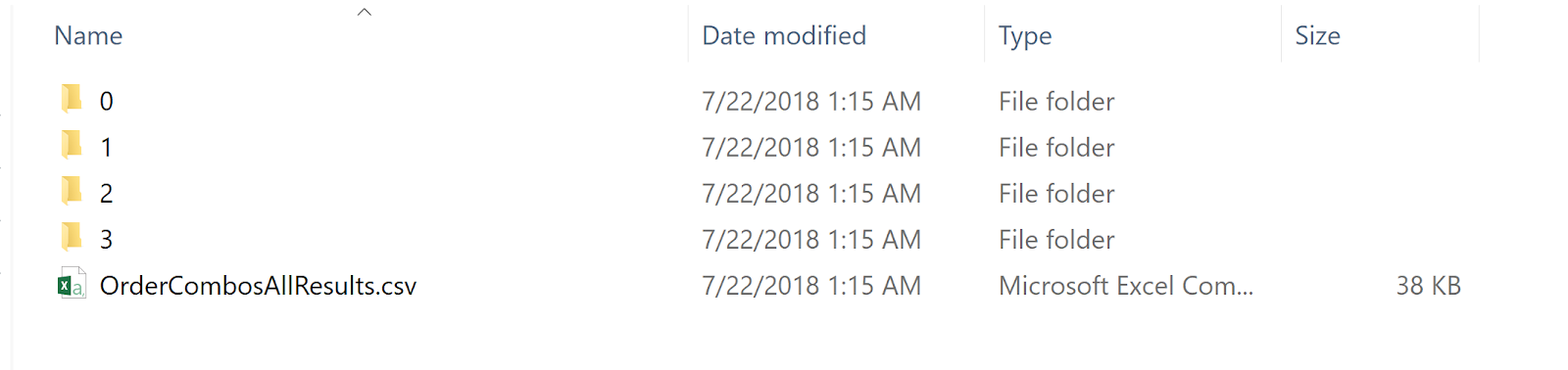

    Figure 14: Contents of OrderCombos directory


    [​IMG]

    Figure 15: Contents of the directory containing the first filtered strategy and the output of all order combinations



    [​IMG]

    Figure 16: Contents of OrderComboResults.csv containing results for all of the order combinations



    Extending the Platform
    [​IMG]

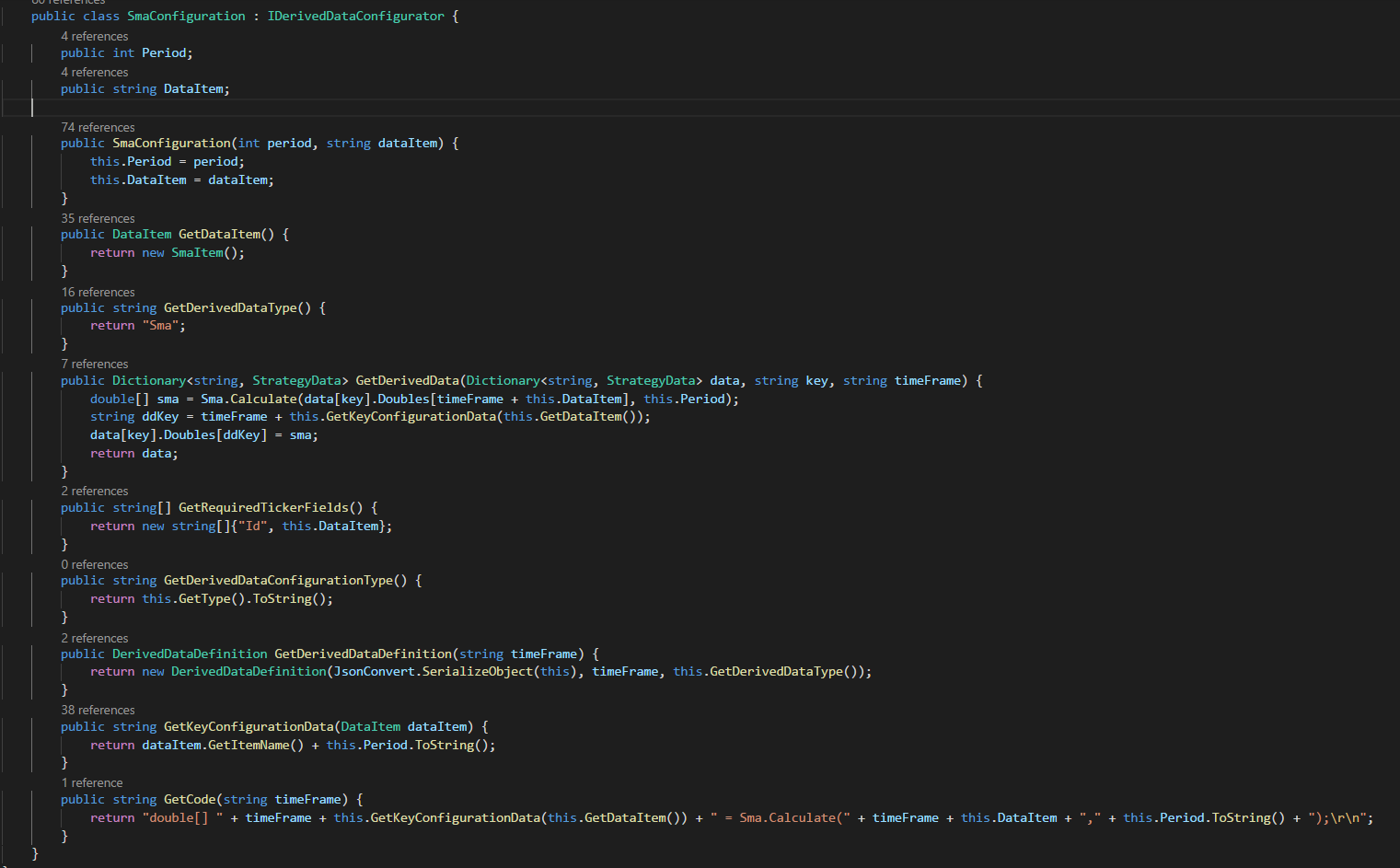

    Figure 16: Class implementing IDerivedDataConfigurator interface


    Figure 16 shows how to wrap indicator calls and resulting data to make available by the platform via the IDerivedDataConfigurator interface. See Figure 1 for a demonstration of how the SmaConfiguration class is used in a strategy component. The GetDerivedData method calls into the external indicator code and the GetCode method gets the code required to make a call to the indicator. For now, this is C# code but will eventually be a more general purpose format that can be consumed by interpreter classes which can generate code for other platforms.


    [​IMG]

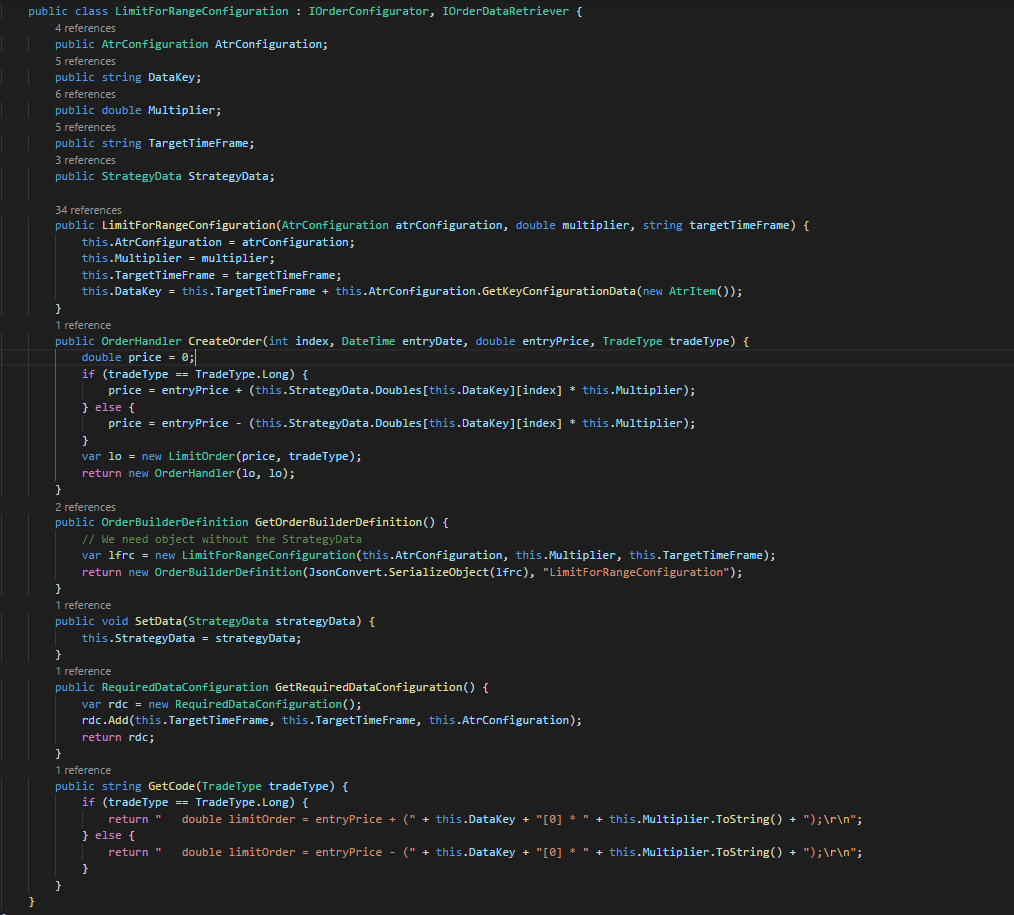

    Figure 17: Class implementing IOrderConfigurator and IOrderDataRetriever interfaces


    Figure 17 shows how users can create their own order logic via classes implementing the IOrderConfigurator and IOrderDataRetriever interfaces. See Figure 2 for an example of how the LimitForRangeConfiguration class is used to create and OrderBuilder.


    [​IMG]

    Figure 17: Class implementing the IStrategyFilter interface


    Figure 17 shows the MinimumTradeCountFilter class implementing the IStrategyFilter interface. Users can easily create their own strategy filters as shown above.

    Last edited: Jul 22, 2018
    schweiz, winnertakesall and MarkBrown like this.
  2. there are a couple of platforms that approach systems development this way. the one i am most familiar with is the ned davis platform called technalyzer which uses a proprietary programing script language called "tel". around 2000 and earlier the platform leased with data and support and traing for about 250k a year. however most everything i ever learned about finding edges i learned from that platform. it opened my eyes about preconceptions and the difference between being right and making money. i would highly suggest you use some sub daily data, i used mostly natural hour data to test on and daily for large projects of cross analysis concepts.

    my most used parameters were to disqualify "so many days without new equity rise" "minimum trade pft/loss had to be x" "min profit factor of x" "max percentage draw down" "min/max trades per week" "commitment of trade - meaning institutional trading cannot turn on a dime you need to be committed in a trade for x number of hours as to not have your size have an effect on the market your trading etc.

    d08 and fan27 like this.
  3. fan27

    fan27

    Thanks for the info Mark! The SDK portion of my platform can support any time-frame (multiple time-frames in a strategy) though the component I am currently using to parse OHLCV data supports 1 minute and above. And yes, being able to filter out strategies on the fly is a huge time saver for disqualifying ideas.

    MarkBrown likes this.

  4. i always wondered why someone didn't create a program that you could draw a equity curve and using vectoring tell it to throw the kitchen sink at it until it find a combination that met your criteria. one thing the technalyzer did was you could throw at it a few thousand indicators and tell it you wanted a maximum of two indicators used to build your system. it would do crazy stuff like make a trend indicator out of a rsi and make a reversion to the mean out of a moving average - stuff you would never try and it worked marvesouly.

    now days i mostly only use range based bars for modeling.

    kj5159 likes this.
  5. fan27

    fan27

    Sounds like some interesting features! I have a lot of ideas for the product. For example, it would be cool to add meta data to indicators and data and the platform would know how to test the indicator/data based on its meta data. Then it would just be a matter of feeding the system new indicators and data.

    MarkBrown likes this.
  6. @fan27 it sounds like that you are trying exhaustively all possible trading rules and all combinations of trading rules. With the objective to find the best performing set of rules. This sounds very much like "data fitting" to me, with the danger that what worked in the past does not necessarily work in the future.

    fan27 likes this.
  7. traider

    traider

    I haven't gone through the whole design but maybe you can discuss the differences between this and a giant genetic optimizer.
    The genetic algo is even more unconstrained, it will build expression trees of time series transformations, combine them until you get a "fit"

    fan27 likes this.
  8. traider

    traider

    Can you share what is the criteria that you use now for filtering strategies? I find that the more independent trades the system makes, the better it is, so much so that lower sharpe can be ok if trades are numerous.

    Did the ned davis platform automatically come up with potential strategies or did you have to think of the ideas yourself. In your experience is it much harder to find intraday strategies vs strategies that hold for days and weeks?

  9. i am talking about institutional trading back in the 90's - we liked to see 250 per trade net gain or more, no longer than 9 months without new equity highs, no more than two indicators used, drawdown no more than 10%, average trades per week 1-5, our target for this was the us 30 bond futures, it was a very successful model and ran for almost two decades until we traded it into the ground. it rand on natural hour data.

    yes the ndr built it's own systems and then you had to set around and figure out what it did and sort of decode it piece by piece.

  10. fan27

    fan27

    Not all feature combinations, just ones configured by the user. In the example I provided, strategies are first discovered and tested on in sample data. The filtered strategies are then tested on out of sample data and filtered again. In practice, I split the data up into three slices that the strategies must pass the filters on.

    #10     Jul 23, 2018
